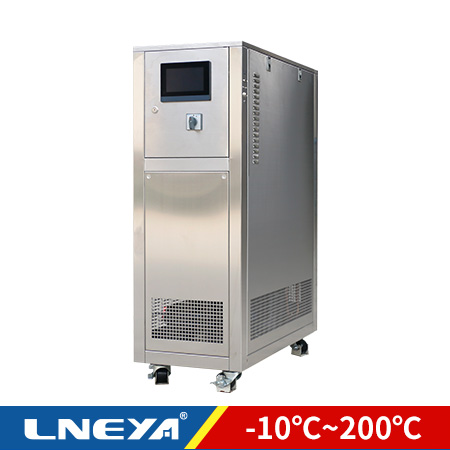

SUNDI (-10 ~ 200℃)

SUNDI (-10 ~ 200℃)

  • Temperature Range-10 ~ 200℃
  • Temperature Control Accuracy±0.5℃
  • Heating Power2.5KW ~ 15KW
  • Cooling Capacity AT 20℃2.5KW ~ 15KW
  • Circulating Pump Flow and Pressure20~75L/min 2~2.5BAR
  • Power Supply3.6 ~ 20KW
  • Place of OriginChina
  • Quality Guarantee Period12 months

Product Details

FEATURES:

Typical Applications Of Cooling Heating Chiller: dynamic constant temperature control of high pressure reactor cold and heat source, dynamic constant temperature control of double-layer glass reactor cold and heat source, dynamic constant temperature control of double-layer reactor cold and heat source, constant temperature of microchannel reactor Control; small thermostat control system, steaming system temperature control, material low temperature high temperature aging test, combined chemical cold source heat source constant temperature control, semiconductor equipment cooling heating, vacuum chamber cooling heating constant temperature control.

Dynamic Temperature Control System Advantages And Functions: temperature range from -120℃ to 350℃, superior performance, high precision, intelligent temperature control. Multi-function alarm system and safety function, 7-inch, 10-inch color TFT touch screen graphic display, magnetic drive pump, no shaft seal leakage problem.

Ultra-high Temperature Cooling Technology Can Directly Cool Down From 300 High Temperature. Because only the heat transfer medium in the expansion chamber is in contact with the oxygen in the air (and the temperature of the expansion tank is between normal temperature and 60℃), which can reduce the heat transfer medium. The risk of oxidizing and absorbing moisture from the air. No high-temperature heat medium evaporates at high temperature, and continuous control can be achieved with -80℃ to 190℃, -70℃ to 220℃, -88℃to 170℃, -55℃ to 250℃, and -30℃ to 300℃ without pressurization temperature.

Model SUNDI-125
SUNDI-125W
SUNDI-135
SUNDI-135W
SUNDI-155
SUNDI-155W
SUNDI-175
SUNDI-175W
SUNDI-1A10
SUNDI-1A10W
SUNDI-1A15
SUNDI-1A15W
Temp. range -10℃~+200℃
Control Mode Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control Process temp. control and jacket temp. control model
Temp. difference Set or control the temperature difference between jacket oil and raw material process
Program Editor 10 programs, each program can edit 40 steps
Communication Portocol MODBUS RTU Protocol, RS485 interface
Material temp. feedback PT100 OR 4~20mA or communication(normal: PT100)
Temp. feedback The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)
Medium temp. acccuracy ±0.5℃
Material temp. accuracy ±1℃
Heating power kW 2.5 3.5 5.5 7.5 10 15
Cooling
capacity kW at
200℃ 2.5 3.5 5.5 7.5 10 15
20℃ 2.5 3.5 5.5 7.5 10 15
-5℃ 1.5 2.1 3.3 4.2 6 9
Circulation pump
max
L/min bar
20 35 35 50 50 75
2 2 2 2 2 2.5
Compressor Mitsubishi Mitsubishi Emerson copeland vortex flexible
Expansion valve Emerson thermal expansion valve/danfoss thermal expansion valve
Evaporator DANFOSS/KAORI Plate heat exchanger
Operation Panel 7-inch touch screen,show temp curve\EXCEL data output
Safety protection Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation
system
The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant R404A/R507C, optional: R448A
Connection size G1/2 G3/4 G3/4 G1 G1 G1
Water-cooled type
W(cooling water@20℃)
600L/H
1.5bar~4bar
800L/H
1.5bar~4bar
1000L/H
1.5bar~4bar
1200L/H
1.5bar~4bar
1600L/H
1.5bar~4bar
2000L/H
1.5bar~4bar
Dimension
(water type)mm
450
*650
*1200
500
*850
*1300
500
*850
*1300
550
*1000
*1750
550
*1000
*1750
700
*1000
*1750
Dimension
(air type)mm
450
*650
*1300
500
*850
*1300
550
*1000
*1750
550
*1000
*1750
700
*1000
*1750
700
*1000
*1750
Isolate size
(air type)mm
450
*1100
*1300
450
*1100
*1300
450
*1100
*1300
550
*1200
*1700
550
*1200
*1700
550
*1200
*1700
Positive pressure
(water type)mm
1100
*950
*1950
1100
*950
*1950
1100
950
*1950
1100
*950
*1950
1100
*950
*1950
1200
*1100
*1950
Weight kg 115 165 185 235 280 300
Power
380V 50HZ
AC 220V 50HZ
3.6kW
5.6kW 7.5kW 10kW 13kW 20kW
