FL(5℃ ~ 50℃)
FL(5℃ ~ 50℃)
FL(5℃ ~ 50℃)
FL(5℃ ~ 50℃)
FL(5℃ ~ 50℃)

Water Chiller/Portable Chiller/Laboratory Chiller

  • Temperature Range5℃ ~ 50℃
  • Circulation Pump (max)25L/min 2Bar~250L/min 2.5Bar
  • Capacity of Liquid Storage15L~300L
  • Cooling Capacity AT 10℃1.8kW ~ 36kW
  • Power max 50HZ1.5kW220V ~ 17kW380V
  • Place of OriginChina
  • Quality Guarantee Period12 months

Application: Various Reactors, Distillation or Extraction System, Laboratory, University, Research Institute, Aerospace, Automotive Industry, Semiconductor and Electrical Test, Chemical, Pharmaceutical, Petrochemical, Biochemical, Medical, Hospital, R&D Workshop, Biological and Other Industries.

Product Details

Chiller Introduce

Water Chiller, temperature control range is 5℃ to 50℃, the temperature of the heat-conducting liquid can be adjusted, and the temperature control accuracy is high. The device adopts international brand accessories with stable performance and can work continuously for 24 hours.

The product can be used for cooling the heating part of the semiconductor manufacturing device, cooling the heating part of the laser device, and cooling the heating part of the analysis and detection machine. Some models are specially upgraded, not only for cooling but also for heating, and the temperature control range can reach 5℃ to 50℃, which greatly improves the performance of precision cooling water circulation equipment and expands the application range of the equipment.



Main function is refrigeration and cooling. The water pump pumps the water from the water tank to the equipment to be used. The temperature of the frozen water increases after absorbing the heat of the water, so as to achieve the cooling effect of the required equipment. And this process is cyclical, continuously pumping out water, cooling the equipment, and then returning the water to continue to absorb heat and cool down. In this process, the water in the cooling system is continuously reused. Therefore, the chiller is green and environmentally friendly and solves the problem of water resources.



Recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

 Get Quote   Inquiry Email



Model FL-0250 FL-0500 FL-0700 FL-1000 FL-1500 FL-2000 FL-2600 FL-3500 FL-5000
Medium Temperature Range Standard FL series temperature range 5℃~35℃ only with cooling function, (FL-800 temperature range -15°C~30°C)
  FL with H series temperature range 5℃~50℃ with cooling function as well as heating cuntion.
Temp. Control ASET multifunctional controller, control temperature of water tank, temperature control accuracy ±0.5℃
Tem. Feedback Temperature feedback PT100
Cooling Capacity 20℃ 2.5kw 5kw 7kw 10kw 15kw 20kw 26kw 35kw 50kw
10℃ 1.8kw 3.6kw 5kw 7.2kw 11kw 14.5kw 18.5kw 25.2kw 36kw
Cooling Capacity
H Series
10℃ 2.5kw 5kw 7kw 10kw 15kw 20kw 26kw 35kw 50kw
20℃ 2kw 4kw 5.6kw 8kw 12kw 16kw 20kw 28kw 40kw
45℃ 1kw 2kw 2.8kw 4kw 6kw 8kw 11kw 14kw 20kw
Circulation pump flow, pressure 25L/min
2BAR
35L/min
2.5BAR
35L/min
2.5BAR
50L/min
2.5BAR
75L/min
2.5BAR
75L/min
2.5BAR
110L/min
2.5BAR
200L/min
2.5BAR
250L/min
2.5BAR

Capacity of liquid storage 15L 25L 40L 40L 60L 70L 100L 200L 300L
Compressor Mitsubishi Emerson Copeland
Evaporator Copper tube nickel plating
Operation panel Display set temperature and measured temperature, touch key to operate input temperature
Safety Protection Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.
Refrigerant R407C
Connection Size G1/2 G3/4 G3/4 G3/4 G1 G1 G1 1/4 DN40 PN10 DN40 PN10
Product size(mm) 45*65*120 50*85*130 55*100*175 55*100*175 70*100*175 70*100*175 80*120*185 95*170*205 100*200*220
Weight 115KG 145kg 180kg 225kg 290kg 340kg 400KG 560KG 800KG
Power (max)
50HZ
AC220V
1.5kW
AC220V
2.2kW
AC220V
3kW
AC380V
4kW
AC380V
5kW
AC380V
6kW
AC380V
8kW
AC380V
12kW
AC380V
17kW

Shell Material Cold rolled steel painting
Optional 7-inch color touch screen, temperature curve record, data export excel-format
Optional SUS304 Material
Optional Power 220V 60HZ three-phases,440V~480V 60HZ three-phases

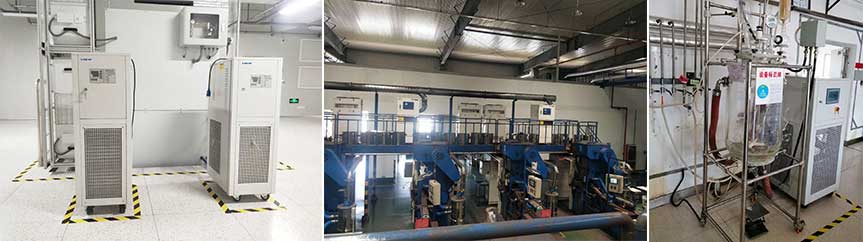

Application Scenarios

  • Plastic industry: accurately control the mold temperature of all kinds of plastic granulation, reduce the beer molding cycle time, and ensure the stability of product quality.
  • Electronic industry: stabilize the molecular formula of electronic components in the production line, improve the standard rate of electronic components, apply it to the field of ultrasonic cleaning, and reasonably avoid the damage caused by the evaporation and evaporation of expensive detergent.
  • Electroplating field: control the electroplating temperature, improve the relative density and smoothness of plated parts, reduce the electroplating cycle time, improve productivity and improve product quality.
  • Mechanical Engineering: control the working pressure and oil temperature of steam pressure system software, stabilize the water temperature and steam pressure, increase the service time of oil products, improve the high efficiency of lubrication of mechanical equipment and reduce wear.
  • Industrial production of Engineering Construction: provide chilled water for concrete, make the molecular formula of concrete suitable for the main purpose of engineering construction, and reasonably improve the strength and ductility of concrete.
  • Vacuum plating: control the temperature of vacuum coating machine to ensure the high quality of plated parts.
  • Chemical and Pharmaceutical industry: in the medical industry, the key is to control the temperature control of hair alcohol drugs. Pharmaceutical manufacturing enterprises should flexibly use the chiller equipment, effectively strengthen technological innovation on the basis of giving full play to its advantages, improve the cost performance of the chiller, and then better serve the projects in the pharmaceutical industry.
  • Laser industry: used in laser marking machines, laser engraving machines, laser welding machines, laser inkjet printers, laser cutting machines and other laser processing equipment to accurately control the temperature required by the lser equipment to ensure the normal operation of the laser equipment.
