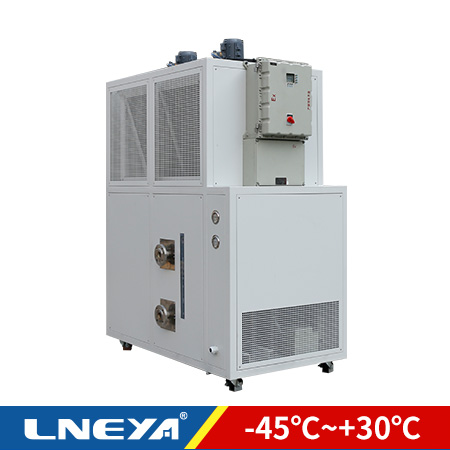

LT(-45℃ ~ 30℃)

Refrigeraed Circulator LT series

  • Temperature Range-45℃ ~ 30℃
  • Circulation Pump (max)20L/min 0.7Bar~50L/min 1Bar
  • Capacity of Liquid Storage15L~80L
  • Cooling Capacity AT -20℃1.2kW ~ 10kW
  • Power max 50HZ1.6kW220V ~ 8KW380V
  • Place of OriginChina
  • Quality Guarantee Period12 months

Product Details

FEATURES:

The product adopts the international brand compressor Carlyle, which is small in size and high in efficiency. The single compressor can realize the temperature control of -152 °C, and the ultra-low temperature refrigeration technology is at the international advanced level.

1. To save water resources, it is possible to use the glycol-water mixture to carry out circulating refrigeration, strict circulation pipeline design, prevent circulating water pollution, and prolong the use time of circulating water;
2. Original imported compressor, overlapping supercooled refrigeration technology;
3. Double condensation high efficiency system;
4. Computer cascade temperature controller, temperature digital display, adjustment unit 0.1 degree, PT100 temperature sensor, -125°C~ -20°C wide temperature range;
5. Ambient temperature monitoring function to prevent the system operating environment temperature from being too high;
6. It adopts full-closed design, no water absorption during low-temperature operation, ensuring the purity of cold and heat-conductive medium, preventing ice crystals and improving the life of thermal fluid.

Refrigerated circulators, a very wide refrigeration temperature range, and a controllable temperature of -150 ℃ to -5 ℃. It adopts secondary subcooling, fast cooling speed, safe and reliable, and is used for rapid liquid cooling. It is widely used in high-tech industries such as petrochemical, medical, pharmaceutical, biochemical, freeze-drying, pharmaceutical and so on.

Model LT-5018N LT-5040N LT-5062N LT-5090N LT-50A1N LT-50A2N
Medium Temperature Range  -37℃~30℃ -45℃~30℃
Temp. Control and Dispaly  PLC multifunctional controller, control outlet temperature of water tank
Temp. Control Optional Temperature feedback PT100 (inlet temperature, outlet temperature)
Cooling Capacity -10℃ 1.5KW 3.2KW 4.5KW 6.2KW 8.3KW 12KW
  -20℃ 1.2KW 2.7KW 3.8KW 5.5KW 7KW 10KW
  -40℃   0.75KW 1.15KW 1.5KW 2.1KW 3KW
Circulation Pump Flow Rate, Pressure  (max)  20L/min
0.7BAR
20L/min
0.7BAR
35L/min
1BAR
35L/min
1BAR
50L/min
1BAR
50L/min
1BAR
Capacity of Liquid Storage  15L 20L 25L 30L 50L 80L
Compressor Tecumseh, Emerson Copeland, Danfoss
Evaporator Plate Heat Exchanger
Operation Panel 7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record,  data export excel-format
Safety Protection Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.
Refrigerant R-404A/R507C
Connection Size ZG1/2 ZG3/4 ZG3/4 ZG3/4 ZG1 ZG1
Product size(air-cooled)(cm) 40*70*130 45*70*160 45*70*160 55*70*175 65*85*185 70*85*185
Weight (air-cooled) 145KG 185kg 230kg 275kg 340kg 380kg
Power 50HZ
max
AC220V
1.5kW
AC380V
2kW
AC380V
3.5kW
AC380V
4.5kW
AC380V
6kW
AC380V
8kW
Shell Material Cold rolled steel painting
Optional Pressure ≤6 bar circulating pump
Optional  MODBUS RTU Protocol, RS 485 Interface
Optional SUS304 Material
Optional Power 220V 60HZ three-phases,460V 60HZ three-phases
Remark Can make the bigger capacity of liquid storage as required.
