SUNDI (-45 ~ 300℃)

SUNDI (-45 ~ 300℃)

  • Temperature Range-45 ~ 300℃
  • Temperature Control Accuracy±0.5℃
  • Heating Power5.5KW ~ 25KW
  • Cooling Capacity AT 0℃5KW ~ 25KW
  • Circulating Pump Flow and Pressure35~150L/min 2~2.5BAR
  • Power Supply9.5 ~ 38KW
  • Place of OriginChina
  • Quality Guarantee Period12 months

Product Details

FEATURES:

Typical Applications Of Cooling Heating Chiller: dynamic constant temperature control of high pressure reactor cold and heat source, dynamic constant temperature control of double-layer glass reactor cold and heat source, dynamic constant temperature control of double-layer reactor cold and heat source, constant temperature of microchannel reactor Control; small thermostat control system, steaming system temperature control, material low temperature high temperature aging test, combined chemical cold source heat source constant temperature control, semiconductor equipment cooling heating, vacuum chamber cooling heating constant temperature control.

Dynamic Temperature Control System Advantages And Functions: temperature range from -120℃ to 350℃, superior performance, high precision, intelligent temperature control. Multi-function alarm system and safety function, 7-inch, 10-inch color TFT touch screen graphic display, magnetic drive pump, no shaft seal leakage problem.

Ultra-high Temperature Cooling Technology Can Directly Cool Down From 300 High Temperature. Because only the heat transfer medium in the expansion chamber is in contact with the oxygen in the air (and the temperature of the expansion tank is between normal temperature and 60℃), which can reduce the heat transfer medium. The risk of oxidizing and absorbing moisture from the air. No high-temperature heat medium evaporates at high temperature, and continuous control can be achieved with -80℃ to 190℃, -70℃ to 220℃, -88℃to 170℃, -55℃ to 250℃, and -30℃ to 300℃ without pressurization temperature.



Model SUNDI-555WV SUNDI-575WV SUNDI-5A10WV SUNDI-5A15WV SUNDI-5A25WV
Temp. range -45℃~+300℃  (the system add pressure 3bar)
Control Mode Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control Process temp. control and jacket temp. control model
Temp. difference Set or control the temperature difference between jacket oil and raw material process
Program Editor 5 programs, each program can edit 40 steps.
Communication Portocol MODBUS RTU Protocol,RS485 interface
Material temp. feedback PT100 OR 4~20mA or communication(normal: PT100)
Temp. feedback The temp. of three points: the inlet and outlet of equipment,  reactor material temp.(external temp. sensor)
Medium temp. acccuracy ±0.5℃
Material temp. accuracy ±1℃
Heating power 5.5 7.5 10 15 25
Cooling
capacity
kW at
250℃ 5.5 7.5 10 15 25
100℃ 5.5 7.5 10 15 25
20℃ 5.5 7.5 10 15 25
0℃ 5 7 10 15 25
-20℃ 2.9 4.2 6 11 16
-40℃ 0.9 1.5 2 3.8 4.7
Circulation pump max
L/min bar
35 50 60 110 150
    1.2 1.2 1.5 1.5 2.5
Pump LNEYA magnetic drive pump
Compressor DANFOSS/ Emerson copeland vortex flexible
Expansion valve Electronic expansion valve.
Evaporator Plate heat exchanger
Operation Panel 7-inch touch screen,show temp curve\EXCEL data output
Safety protection Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.

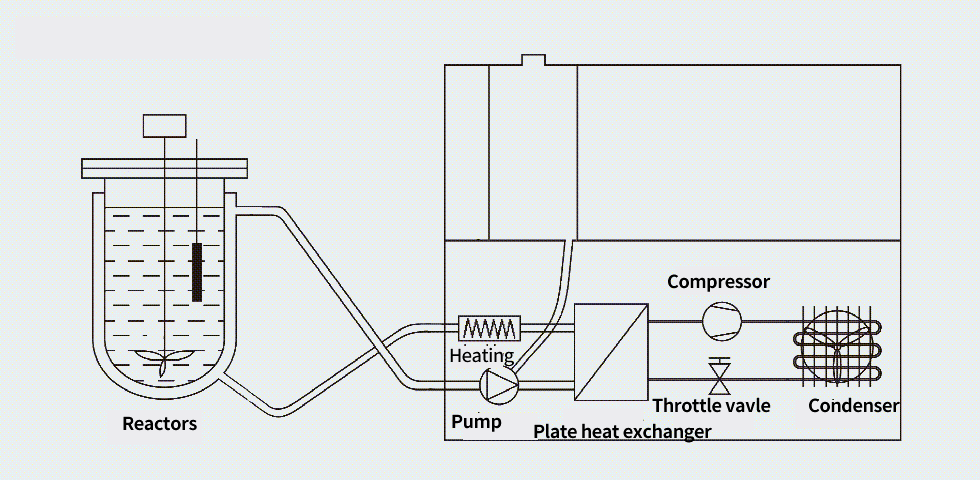

Closed circulation system The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant R404A/R507C
Connection size ZG3/4 ZG1 ZG1 ZG1 DN32 PN10
Water-cooled type
W(@20℃)
1500L/H
1.5bar~4bar
1800L/H
1.5bar~4bar
2600L/H
1.5bar~4bar
3200L/H
1.5bar~5bar
7m³/H
1.5bar~4bar
Dimension cm 55
*70
*175
55
*70
*175
65
*85
*190
65
*85
*190
80
*120
*185
Weight kg 245 285 320 360 420
Power 380V 50HZ 9kW max 11.5kW max 16kW max 23kW max 37kW max
Optional The sundi series can be selected within the heating power of 25kW. The temperature control accuracy of the medium is ±0.1°C, and the temperature control accuracy of the material is ±0.1°C.
